Tewkesbury Drive, Lytham St Annes

Donegan Civil Engineering were appointed as the main contractor on this United Utilities project.

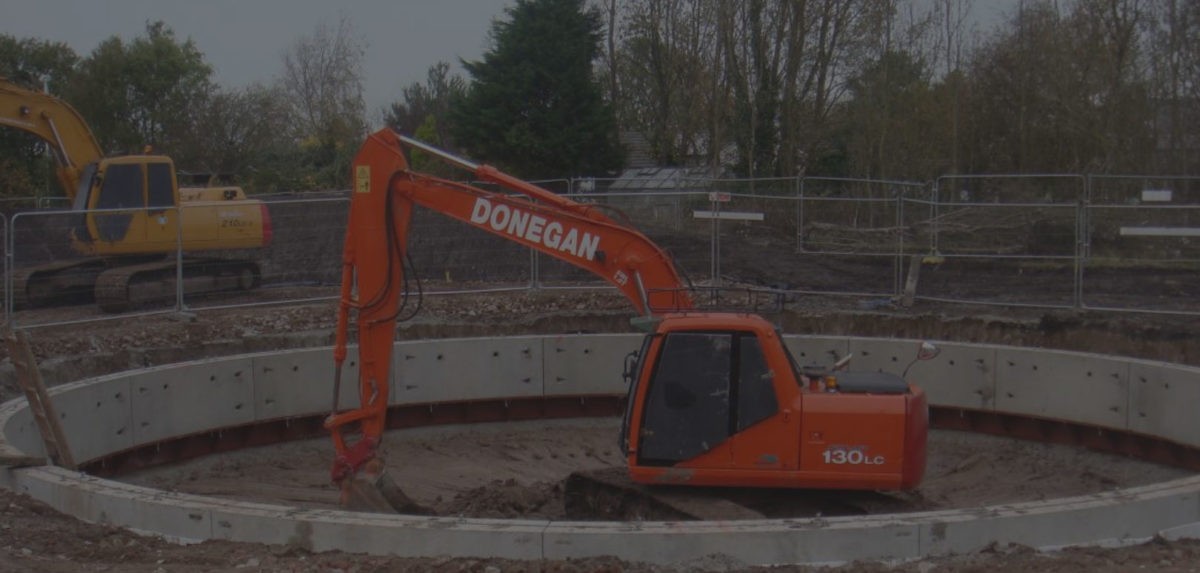

The scope of works included the construction of a 15.00m diameter shaft which was sunk by caisson approx 15m deep.

The shaft was then converted into a detention tank which would store storm water during times of heavy rainfall to prevent flooding of the local area and take a total of 11 local homes off the flood register.

Work also included constructing an insitu reinforced concrete discharge chamber and weir chamber. And upsizing approx 250m of the local sewer network with pipes ranging from 300mm to 750mm diameter complete with 9 manhole chambers followed by the abandonment of the existing sewers.

Finally a permanent grass paving system for HGV access was laid across the entrance and around the new underground detention tank.

Open-Cut Drainage, Reinforced Concrete Structures, Segmental Shaft Sinking
